Application Principle of High-Speed Direct-Drive Lockstitch Machine with Automatic Thread Trimming
The high-speed direct-drive lockstitch machine with automatic thread trimming is advanced industrial sewing equipment integrating precision mechanics, electronic control and intelligent drive. Its core principle is efficient, accurate automatic sewing via three key systems: direct-drive power, automatic thread trimming and lockstitch forming. This article clarifies its working logic for stable, efficient operation.
1. Core Power System: Direct-Drive Motor Principle
Unlike traditional belt-driven models, this machine uses an integrated direct-drive motor (its "heart") with the motor shaft directly connected to the main shaft, eliminating energy loss from intermediate transmission parts like belts.
With servo control, the motor responds instantly to operation signals, adjusting speed (0-5000 stitches/min) by pedal force for both high-speed mass production and precision sewing. Its integrated design reduces volume, vibration and noise (≤65dB), saving 25%-60% power to meet green production needs.
2. Automatic Thread Trimming Mechanism: Precision Cutting and Thread Management
A key highlight, the automatic thread trimming function cuts upper and lower threads post-sewing to boost efficiency, relying on mechanical-electronic sensor linkage with three core links: thread detection, cutting and thread end control.
When sewing ends, the control system receives the stop signal, sensors locate threads, and a stepping motor drives double blades to cut cleanly under the needle plate (lower noise, higher stability than solenoid drive). Remaining thread length is ≤3.5mm; some models have a nipper or "air + ball" system to avoid tangling and ensure seam beauty.
3. Lockstitch Forming System: Stable Stitch Quality Guarantee
The lockstitch forming system ensures quality by interweaving upper (needle) and lower (bobbin) threads into firm lockstitches, maintaining consistency even at high speeds via precise mechanics and electronic control.
During operation, the direct-drive motor moves the needle bar up and down: the needle carries the upper thread through the fabric, and the bobbin hook interweaves it with the lower thread. The stepping motor-controlled feed dog pushes fabric at the set stitch length (0.1-5mm). Advanced digital feed models adjust by fabric type to avoid slippage, suitable for cotton, linen and denim.
4. Integrated Control System: The "Brain" of Intelligent Coordination

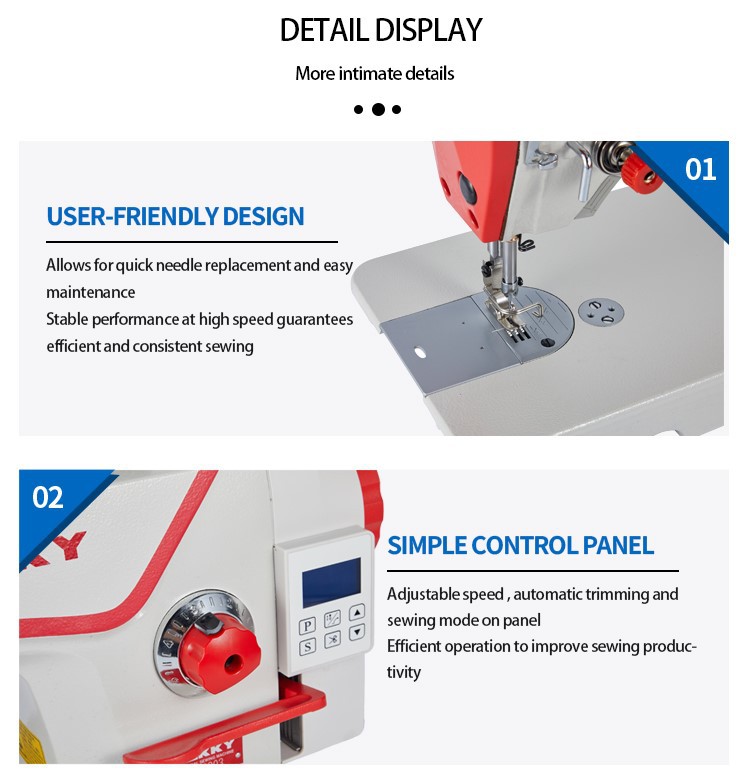

The integrated electronic control system (core of coordination) achieves intelligent control via a microprocessor, integrating speed regulation, thread trimming, stitch adjustment and fault detection, with parameters set via an ergonomic touch panel (anti-misoperation lock).
It collects real-time pedal and sensor signals to coordinate the motor, thread trimming and feed mechanisms (e.g., releasing the pedal triggers needle rise, thread trimming and presser foot lifting). A USB port supports data management, software updates and IoT-enabled batch parameter copying to improve production efficiency.
5. Auxiliary Systems: Ensure Stable and Long-Term Operation
To ensure stability and service life, auxiliary systems include a key oil shielding system: a rigid aluminum die-cast shield stores and circulates lubricant, reducing usage and preventing leakage/stains. Some models have semi-dry/dry heads, eliminating key-part oiling to optimize the environment and cut maintenance costs.
In summary, the machine integrates high speed, precision and automation via its core systems. It solves traditional sewing pain points (low efficiency, high labor intensity, unstable stitches) and supports industrial garment production, suitable for small workshops and large factories.
